Current Location: Home >> Products >> Dust meter

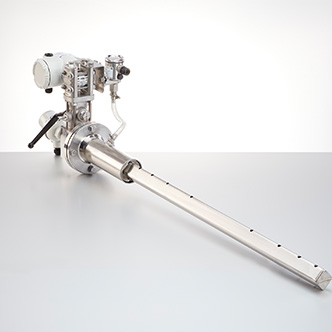

Flue gas flowmeter D-FL100
Flue gas flowmeter D-FL100
Flue gas flowmeter D-FL100
Flue gas flowmeter D-FL100

Flue gas flowmeter D-FL100

    The measuring system D-FL 100 measures the flue gas flow according to the differential pressure principle. The measuring probe has two independent chambers, and the pressure difference between the two chambers is generated by flue gas flow. The control unit determines the gas flow rate and flow rate (under standard or non-standard conditions) in combination with the measurement of cross section, flue gas temperature and pressure.
24-hour free hotline:
  • Characteristic
  • Application
  • Authentication
  • System components
  • Technical parameter
  • Download

lThe gas flow rate can be reliably measured even at high temperature

lCalculation of flue gas flow under standard conditions

lAutomatic zero calibration

lModels with or without supports and models for point measurement

lVery low maintenance





lFlow measurement under high temperature environment

lCross section of plant or large or small flue gas

lVolume flow measurement under high pressure


lTUV suitability test passed

lPassed EN15267-3 certification

lMCERTS


lMeasuring rod

lMounting flange

lDifferential pressure transmitter

lSwitching valve

lProbe adapter

lControl unit

lPressure sensor

lTemperature sensor

lSupport frame





Previous:Ultrasonic flowmeter D-FL2202022-11-17
